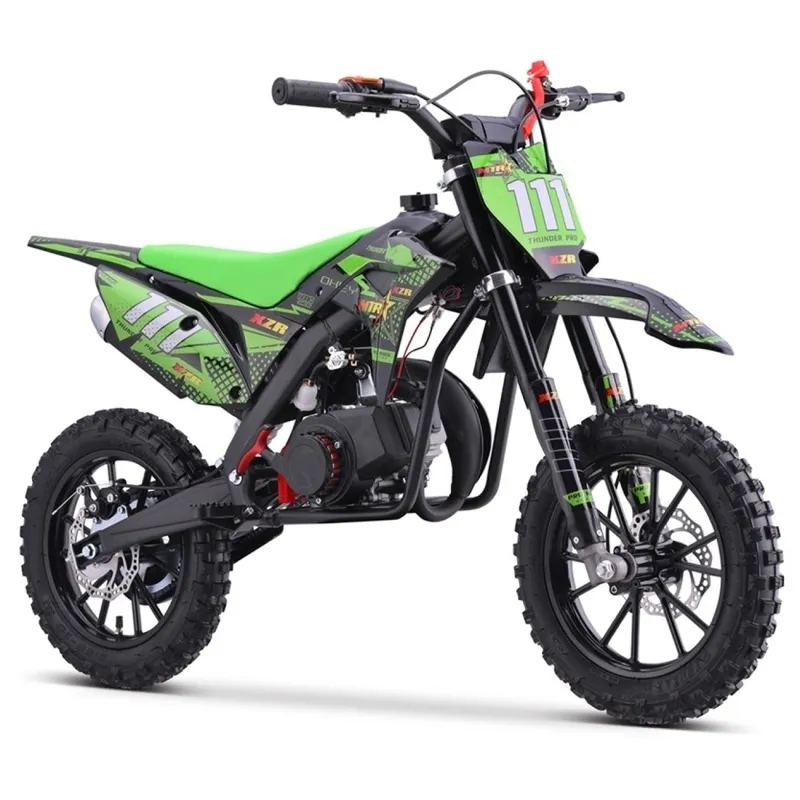

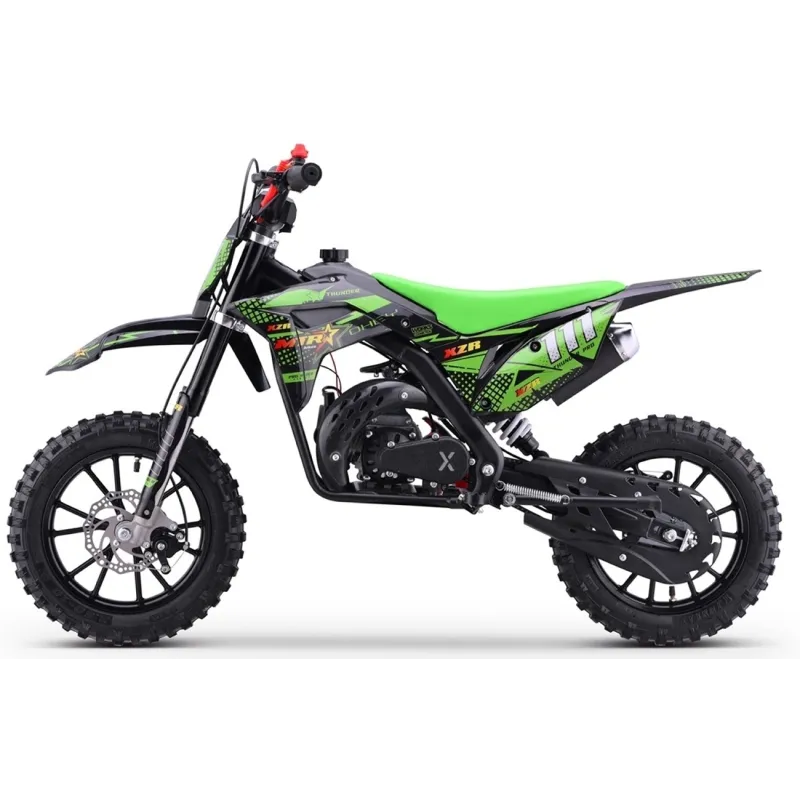

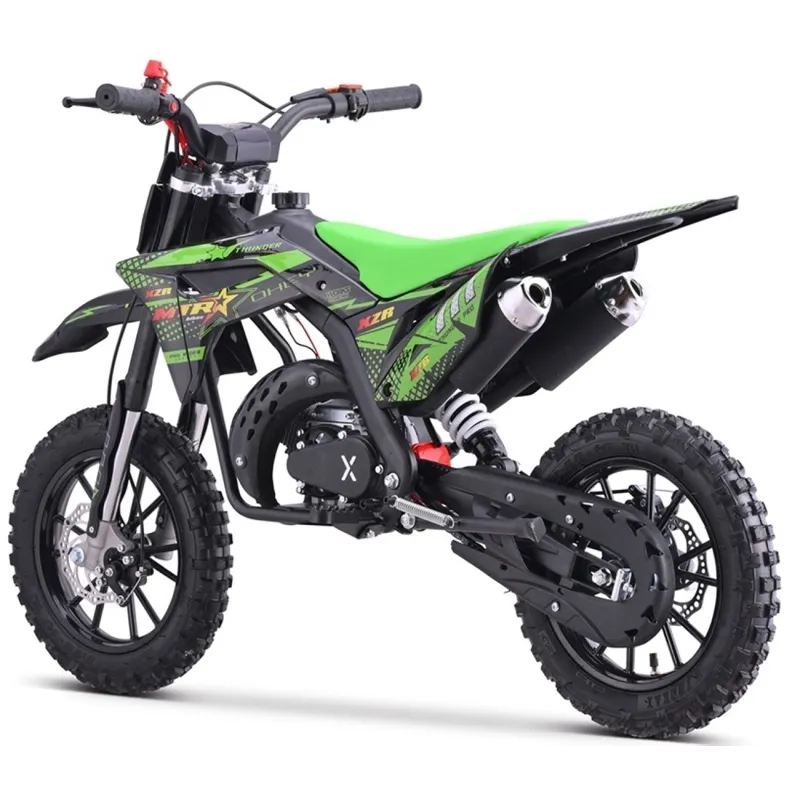

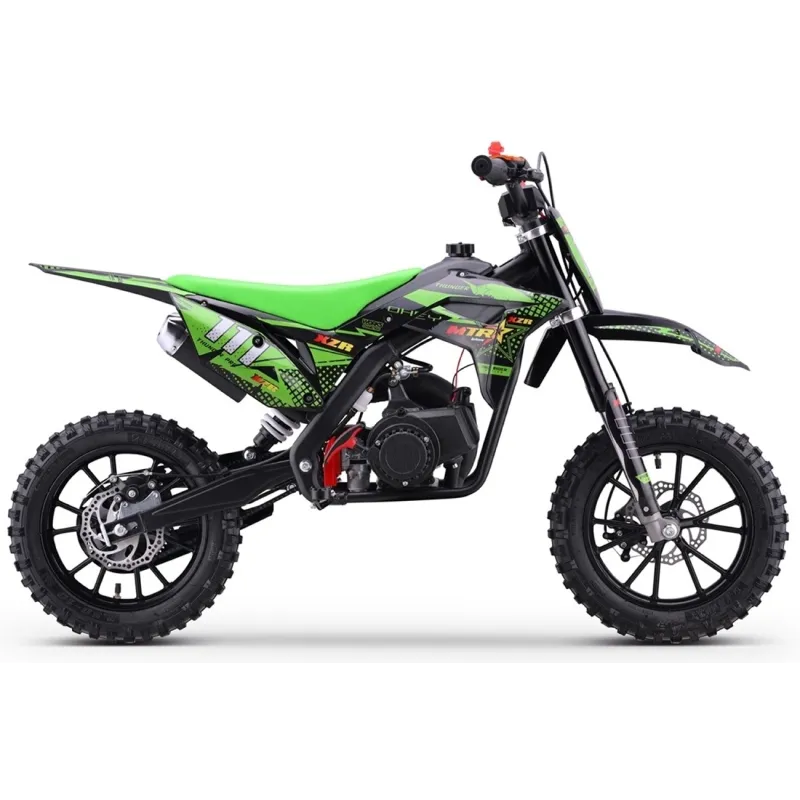

MTR MINICROSS XZR GREEN
Model MTR 712
Parameter items
1P42FZA type of engine, single-cylinder, 2-stroke
Engine Brand KXD
Engine Displacement 51.3
Cooling system Natural air cooling
Bore and stroke 44x37.4 (mm)
Shooter mode manual start
Fule type ≥90 # mixed with oil 2%
Chain transmission type
Driving Rear wheel drive system
Handlebar steering system
Carton size (L * W * H) 1155 * 300 * 565 (mm)
Vehicle size (L * W * H) 1300 × 620 × 800 (mm)
Wheelbase 910mm
Minimum ground clearance 120mm
Seat height 600mm
GW / NW 38/46 kg
Maximum speed 50 km / h
Maximum load 80 kg
Max climbing ≤20 °
Turning diameter 1800mm
Fuel tank capacity 2.15 L
Brake system (F / R) Handbrake, F / r: mechanical disc brake or hydraulic disc brake
Damper (FRONT) Hydraulic
Damper (rear) monoshock made in taiwan
Tires (front / rear) F: 2.5-10, R: 2.5-10
Tire pressure F: 248kpa, R: 248kpa
Alloy wheel rim
limiter No
Switch off Yes
PIT BIKE MTR BRAND HIGH QUALITY
